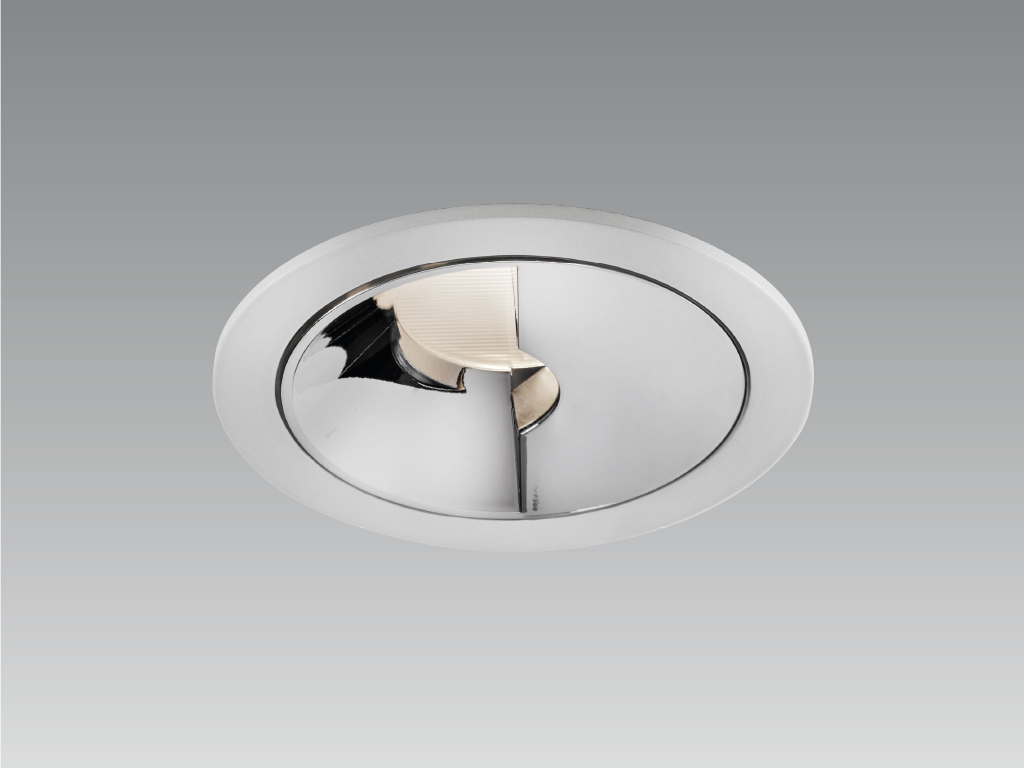

MIRA WALLWASHER

Recessed downlight made of aluminium, with a special wall wash reflector for a excellent uniformity wall illumination and direct lighting:

1) with dim to warm LED 12,6 W, CRI>90, LED module replaceable, please order driver separately

2) with LED 9,3 W or 14 W, 2700K or 3000K, CRI>90, dimmable, LED module replaceable, please order driver separately

3) GU10 LED and halogen lamps are suitable

back to overview

CODE	TYPE	COLOUR	LAMP	LUMEN	POWER SUPPLY	H**
D700	MIRA WALLWASHER	white	1x12,6W LED dim to warm 1910K-3000K 350mA	80-1175 lm	excl. driver	105 mm
D701	MIRA WALLWASHER	black	1x12,6W LED dim to warm 1910K-3000K 350mA	80-1175 lm	excl. driver	105 mm

D684	MIRA WALLWASHER	white	1x14W LED 2700K 500mA	1340 lm	excl. driver	125 mm
D685	MIRA WALLWASHER	black	1x14W LED 2700K 500mA	1340 lm	excl. driver	125 mm
D686	MIRA WALLWASHER	white	1x14W LED 3000K 500mA	1395 lm	excl. driver	125 mm
D687	MIRA WALLWASHER	black	1x14W LED 3000K 500mA	1395 lm	excl. driver	125 mm

D688	MIRA WALLWASHER	white	1x9,3W LED 2700K 500mA	860 lm	excl. driver	100 mm
D689	MIRA WALLWASHER	black	1x9,3W LED 2700K 500mA	860 lm	excl. driver	100 mm
D690	MIRA WALLWASHER	white	1x9,3W LED 3000K 500mA	880 lm	excl. driver	100 mm
D691	MIRA WALLWASHER	black	1x9,3W LED 3000K 500mA	880 lm	excl. driver	100 mm

D714	MIRA WALLWASHER	white	1xGU10 LED or 1x30W halogen	-	230 V	130 mm
D715	MIRA WALLWASHER	black	1xGU10 LED or 1x30W halogen	-	230 V	130 mm

Driver

Photometric data (EULUMDAT) on request.

* Lumen data are nominal data

** H = recessed depth

dim to warm info

• Light quality and dim characteristics of a conventional light bulb combined with the efficiency of the LED technology
• Colour temperature: 1910 K – 3000 K
