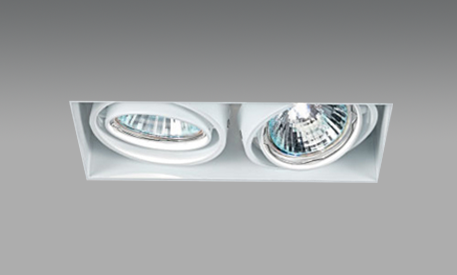

NO FRAME 80 DUO
Double recessed downlight 12 V
or 230 V, for trimless assembly, mountable without tools, illuminant gimbal mounted (2 x 30°), 12 V or 230 V LED and halogen lamps are suitable, please order transformer and recessed frame (KIT) separately
168x90| CODE | TYPE | COLOUR | LAMP | LUMEN | POWER SUPPLY | H** |
|---|---|---|---|---|---|---|
| D915 | NO FRAME 80 DUO | white | 2xGU10 LED or 2x30W halogen | - | 230 V | 140 mm |
| D916 | NO FRAME 80 DUO | black | 2xGU10 LED or 2x30W halogen | - | 230 V | 140 mm |
| D415 | NO FRAME 80 DUO | white | 2xGU5,3 LED or 2x35W IRC halogen | - | excl. transformer | 120 mm |
| D416 | NO FRAME 80 DUO | black | 2xGU5,3 LED or 2x35W IRC halogen | - | excl. transformer | 120 mm |
Photometric data (EULUMDAT) on request.
** H = recessed depth
Accessories
KIT 80 DUO
Recessed frame for NO FRAME 80 DUO for 12,5 mm and 20 mm plasterboards. Compensating plates for other dimensions of plasterboards on request.
| Code | Type | Colour |
|---|---|---|
| D115 | KIT 80 DUO | white |
| D116 | KIT 80 DUO | black |
