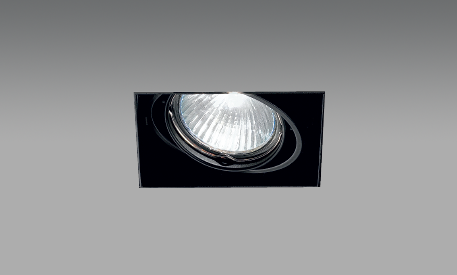

NO FRAME 80

Recessed downlight 12 V or 230 V, for trimless assembly, mountable without tools, illuminant gimbal mounted (2 x 30°), 12 V or 230 V LED and halogen lamps are suitable, please order transformer and recessed frame (KIT) separately

back to overview
90x90
CODETYPECOLOURLAMPLUMENPOWER SUPPLYH**
D911NO FRAME 80white1xGU10 LED or
1x30W halogen
-230 V140 mm
D912NO FRAME 80black1xGU10 LED or
1x30W halogen
-230 V140 mm
D411NO FRAME 80white1xGU5,3 LED or
1x35W IRC halogen
-excl. transformer120 mm
D412NO FRAME 80black1xGU5,3 LED or
1x35W IRC halogen
-excl. transformer120 mm
Transformator
Photometric data (EULUMDAT) on request.
** H = recessed depth

Accessories

KIT 80

Recessed frame for NO FRAME 80 for 12,5 mm and 20 mm plasterboards. Compensating plates for other dimensions of plasterboards on request.

CodeTypeColour
D111KIT 80white
D112KIT 80black
