Pluton Opal

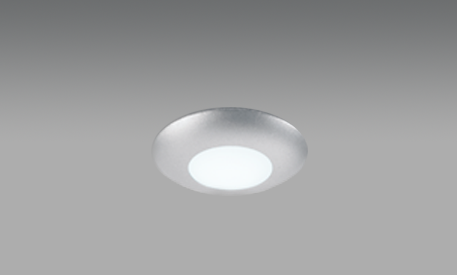

LED-recessed fixture 2 W made of aluminium, with opal diffusor, please order driver separately, RGB version on request

back to overview
30
CODETYPECOLOURLAMPLUMENPOWER SUPPLYH**
592-11-60-01PLUTON OPALchrome1x2W LED 2700K 500mA185 lmexcl. driver26 mm
592-11-60-33PLUTON OPALplatinum1x2W LED 2700K 500mA185 lmexcl. driver26 mm
592-09-60-01PLUTON OPALchrome1x2W LED 3000K 500mA190 lmexcl. driver26 mm
592-09-60-33PLUTON OPALplatinum1x2W LED 3000K 500mA190 lmexcl. driver26 mm
592-05-60-01PLUTON OPALchrome1x2W LED 4000K 500mA200 lmexcl. driver26 mm
592-05-60-33PLUTON OPALplatinum1x2W LED 4000K 500mA200 lmexcl. driver26 mm
592-04-60-01PLUTON OPALchrome1x2W LED blue 500mA-excl. driver26 mm
592-04-60-33PLUTON OPALplatinum1x2W LED blue 500mA-excl. driver26 mm
592-07-60-01PLUTON OPALchrome1x2W LED red 500mA-excl. driver26 mm
592-07-60-33PLUTON OPALplatinum1x2W LED red 500mA-excl. driver26 mm
592-15-60-01PLUTON OPALchrome1x2W LED green 500mA-excl. driver26 mm
592-15-60-33PLUTON OPALplatinum1x2W LED green 500mA-excl. driver26 mm
Driver
* Lumen data are nominal data
** H = recessed depth

Accessories

PLUTON MOUNTING BOX

Mounting box for PLUTON and PLUTON OPAL

CodeTypeColour
9000-0130MOUNTING BOX 30-

PLUTON MOUNTING SLEEVE

Concrete mounting sleeve for PLUTON and PLUTON OPAL

CodeTypeColour
9000-0230MOUNTING SLEEVE 30-
