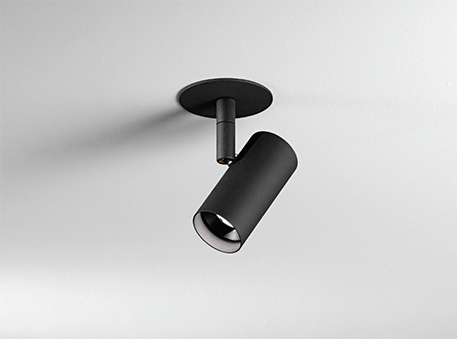

LUCY EP
LED-recessed spotlight 10 W, CRI>90, with recessed plate, high output aluminium reflector and anti glare cone, housing made of die-cast aluminium, adjustable (350°/90°), please order driver separately, Ceiling dimension < 5 mm =
Cut out 50 mm
68
Please choose the beam angle:
| CODE | BEAM ANGLE | |
|---|---|---|
 |
Dxxx-18 | 18° |
| Dxxx-38 | 38° (standard) | |
| Dxxx-60 | 60° |
| CODE | TYPE | COLOUR | LAMP | LUMEN | POWER SUPPLY | H** |
|---|---|---|---|---|---|---|
| D891-__ | LUCY EP | white | 1x10W LED 2700K 500mA | 1040 lm | excl. driver | 45 mm |
| D894-__ | LUCY EP | black | 1x10W LED 2700K 500mA | 1040 lm | excl. driver | 45 mm |
| D922-__ | LUCY EP | white | 1x10W LED 3000K 500mA | 1080 lm | excl. driver | 45 mm |
| D919-__ | LUCY EP | black | 1x10W LED 3000K 500mA | 1080 lm | excl. driver | 45 mm |
Photometric data (EULUMDAT) on request.
* Lumen data are nominal data
** H = recessed depth
