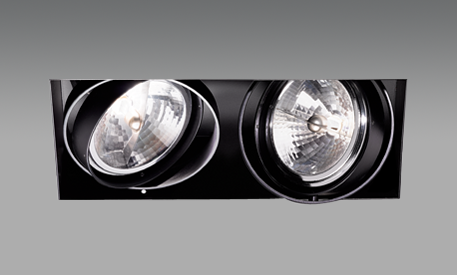

NO FRAME 150 DUO
Double recessed downlight 12 V,
for trimless assembly, mountable without tools, illuminant gimbal mounted (2 x 30°), LED and halogen lamps are suitable, please order transformer and recessed frame (KIT) separately
304x160| CODE | TYPE | COLOUR | LAMP | LUMEN | POWER SUPPLY | H** |
|---|---|---|---|---|---|---|
| D455 | NO FRAME 150 DUO | white | 2xG53 LED or 2x50W IRC halogen | - | excl. transformer | 130 mm |
| D456 | NO FRAME 150 DUO | black | 2xG53 LED or 2x50W IRC halogen | - | excl. transformer | 130 mm |
Photometric data (EULUMDAT) on request.
** H = recessed depth
Accessories
KIT 150 Duo
Recessed frame for NO FRAME 150 DUO for 12,5 mm and 20 mm plasterboards. Compensating plates for other dimensions of plasterboards on request.
| Code | Type | Colour |
|---|---|---|
| D155 | KIT 150 DUO | white |
| D156 | KIT 150 DUO | black |
ANTI GLARE CONE 150
Anti glare cone for serial FRAME 150 and NO FRAME 150
| Code | Type | Colour |
|---|---|---|
| D158 | ANTI GLARE CONE 150 | white |
| D159 | ANTI GLARE CONE 150 | black |
