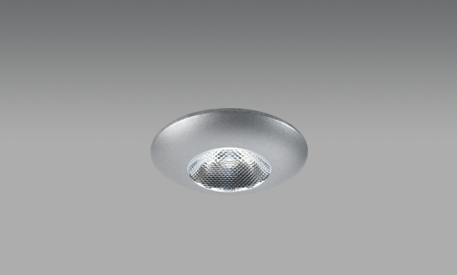

Pluton
LED-recessed fixture 2W made of aluminium, with 30° lens, driver please order separately
30| CODE | TYPE | COLOUR | LAMP | LUMEN | POWER SUPPLY | H** |
|---|---|---|---|---|---|---|
| 592-11-15-01 | PLUTON | chrome | 1x2W LED 30° 2700K 500mA | 185 lm | excl. driver | 26 mm |
| 592-11-15-33 | PLUTON | platinum | 1x2W LED 30° 2700K 500mA | 185 lm | excl. driver | 26 mm |
| 592-09-15-01 | PLUTON | chrome | 1x2W LED 30° 3000K 500mA | 190 lm | excl. driver | 26 mm |
| 592-09-15-33 | PLUTON | platinum | 1x2W LED 30° 3000K 500mA | 190 lm | excl. driver | 26 mm |
| 592-05-15-01 | PLUTON | chrome | 1x2W LED 30° 4000K 500mA | 200 lm | excl. driver | 26 mm |
| 592-05-15-33 | PLUTON | platinum | 1x2W LED 30° 4000K 500mA | 200 lm | excl. driver | 26 mm |
* Lumen data are nominal data
** H = recessed depth
Accessories
PLUTON MOUNTING BOX
Mounting box for PLUTON and PLUTON OPAL
| Code | Type | Colour |
|---|---|---|
| 9000-0130 | MOUNTING BOX 30 | - |
PLUTON MOUNTING SLEEVE
Concrete mounting sleeve for PLUTON and PLUTON OPAL
| Code | Type | Colour |
|---|---|---|
| 9000-0230 | MOUNTING SLEEVE 30 | - |
