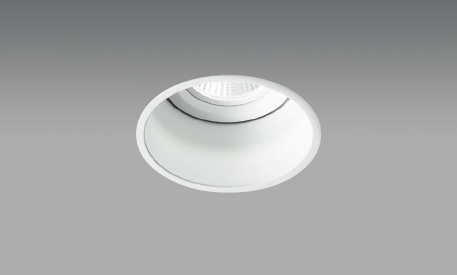

RENA

Recessed downlight made of aluminium, adjustable (2 x 30°),
with recessed lamp:

1) with dim to warm LED 12,6 W, CRI>90, LED module replaceable, please order driver separately

2) with LED 9,3 W, 2700K or 3000K, CRI>90, dimmable, LED module replaceable, please order driver separately

3) GU10 LED and halogen lamps are suitable

back to overview
84

Please choose the beam angle:

CODE LED-MODULE BEAM ANGLE
Reflector Dxxx-11 9,3 W 11° (lens)
Dxxx-15 9,3 W / 12,6 W 15°
Dxxx-25 9,3 W / 12,6 W 25°
Dxxx-38 9,3 W / 12,6 W 38° (standard)
Dxxx-60 9,3 W / 12,6 W 60°




CODETYPECOLOURLAMPLUMENPOWER SUPPLYH**
D575-__RENAwhite1x12,6W LED dim to warm 1910K-3000K 350mA80-1175 lmexcl. driver115 mm
D579-__RENAblack1x12,6W LED dim to warm 1910K-3000K 350mA80-1175 lmexcl. driver115 mm
D869-__RENAwhite1x9,3W LED 2700K 500mA860 lmexcl. driver110 mm
D866-__RENAblack1x9,3W LED 2700K 500mA860 lmexcl. driver110 mm
D863-__RENAwhite1x9,3W LED 3000K 500mA880 lmexcl. driver110 mm
D883-__RENAblack1x9,3W LED 3000K 500mA880 lmexcl. driver110 mm
D583RENAwhite1xGU10 LED or 1x30W halogen-230 V140 mm
D584RENAblack1xGU10 LED or 1x30W halogen-230 V140 mm
Driver
Photometric data (EULUMDAT) on request.
* Lumen data are nominal data
** H = recessed depth

Accessories

SNOOT

Snoot for recessed downlights CREDO, OPUS, OPUS Q, RENA, RIGA and RIGA Q (32xØ48 mm)

CodeTypeColour
D120SNOOTwhite
D121SNOOTblack

dim to warm info

• Light quality and dim characteristics of a conventional light bulb combined with the efficiency of the LED technology
• Colour temperature: 1910 K – 3000 K
