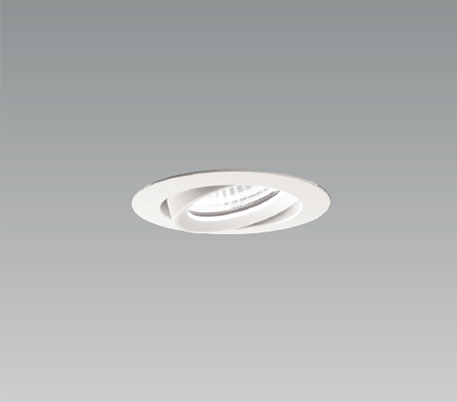

RIGA

Recessed downlight made of aluminium, adjustable (2 x 30°):

1) with dim to warm LED 12,6 W, CRI>90, LED module replaceable, please order driver separately

2) with LED 9,3 W, 2700K or 3000K, CRI>90, dimmable, LED module replaceable, please order driver separately

3) GU10 LED and halogen lamps are suitable

back to overview

Please choose the beam angle:

	LED-MODULE	BEAM ANGLE
	Dxxx-11	9,3 W	11° (lens)
	Dxxx-15	9,3 W / 12,6 W	15°
	Dxxx-25	9,3 W / 12,6 W	25°
Dxxx-38	9,3 W / 12,6 W	38° (standard)
Dxxx-60	9,3 W / 12,6 W	60°

CODE	TYPE	COLOUR	LAMP	LUMEN	POWER SUPPLY	H**
D800-__	RIGA	white	1x12,6W LED dim to warm 1910K-3000K 350mA	80-1175 lm	excl. driver	85 mm
D801-__	RIGA	black	1x12,6W LED dim to warm 1910K-3000K 350mA	80-1175 lm	excl. driver	85 mm

D802-__	RIGA	white	1x9,3W LED 2700K 500mA	860 lm	excl. driver	80 mm
D803-__	RIGA	black	1x9,3W LED 2700K 500mA	860 lm	excl. driver	80 mm
D804-__	RIGA	white	1x9,3W LED 3000K 500mA	880 lm	excl. driver	80 mm
D805-__	RIGA	black	1x9,3W LED 3000K 500mA	880 lm	excl. driver	80 mm

D806	RIGA	white	1xGU10 LED or 1x30W halogen	-	230 V	110 mm
D807	RIGA	black	1xGU10 LED or 1x30W halogen	-	230 V	110 mm

Driver

Photometric data (EULUMDAT) on request.

* Lumen data are nominal data

** H = recessed depth

Accessories

SNOOT

Snoot for recessed downlights CREDO, OPUS, OPUS Q, RENA, RIGA and RIGA Q (32xØ48 mm)

Code	Type	Colour
D120	SNOOT	white
D121	SNOOT	black

dim to warm info

• Light quality and dim characteristics of a conventional light bulb combined with the efficiency of the LED technology
• Colour temperature: 1910 K – 3000 K
