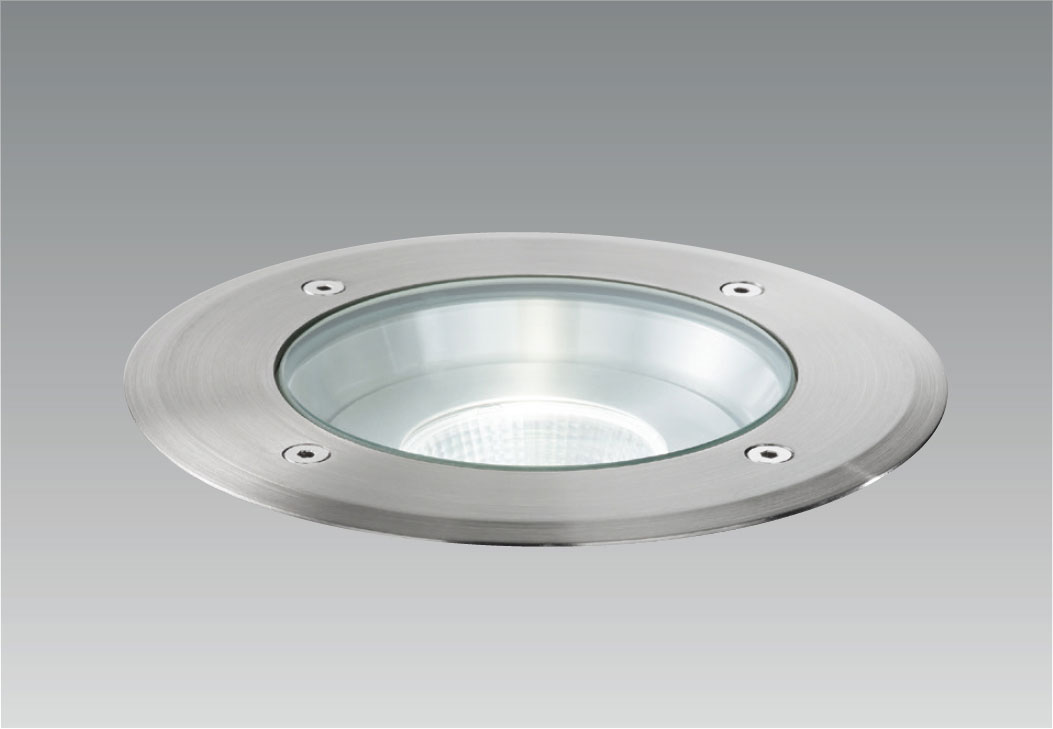

SCOTTY 6

LED-inground luminaire 8 W, CRI>90, with high-quality aluminium reflector and built-in driver 230 V, adjustable 2 x 30°, stainless steel ring, including mounting box, IP67,
30° and 40° beam angle on request

back to overview
126
CODETYPECOLOURLAMPLUMENPOWER SUPPLYH**
D820SCOTTY 6stainless steel1x8W LED 20° 3000K800 lmincl. driver173 mm
Photometric data (EULUMDAT) on request.
* Lumen data are nominal data
** H = recessed depth

Accessories

MICRO JUNCTION BOX IP68 - II

Micro junction box IP68, for maximum 1 luminaire
(2 cable outlets from Ø 5 mm to Ø 12 mm),
3-pin with terminal

CodeTypeColour
D161MICRO JUNCTION BOX
IP68 - II
black

MICRO JUNCTION BOX IP68 - IV

Micro junction box IP68, for maximum 3 luminaires
(4 cable outlets from Ø 5 mm to Ø 12 mm),
3-pin with terminal

CodeTypeColour
D162MICRO JUNCTION BOX
IP68 - IV
black

MICRO JUNCTION BOX IP68 - IV

Micro junction box IP68, for maximum 3 luminaires
(4 cable outlets from Ø 6,5 mm to Ø 12 mm),
3-pin with terminal in in mineral oil based grease

CodeTypeColour
5625MICRO JUNCTION BOX
IP68 - IV
black
