CREDO

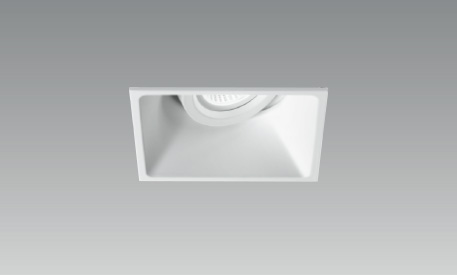

Recessed downlight made of aluminium, adjustable (350°/
2 x 30°), with recessed lamp:

1) with dim to warm LED 12,6 W, CRI>90, LED module replaceable, please order driver separately

2) with LED 9,3 W or 14 W
(with 14 W LED module: adjustable 350°/2 x 20°), 2700K or 3000K, CRI>90, dimmable, LED module replaceable, please order driver separately

3) GU10 LED and halogen lamps are suitable

back to overview

100x100

Please choose the beam angle:

	LED-MODULE	BEAM ANGLE
	Dxxx-11	9,3 W	11° (lens)
	Dxxx-15	9,3 W / 12,6 W	15°
	Dxxx-25	9,3 W / 12,6 W	25°
	Dxxx-38	9,3 W / 12,6 W	38° (standard)
	Dxxx-60	9,3 W / 12,6 W	60°

	Dxxx-15	14 W	15°
Dxxx-25	14 W	25°
Dxxx-38	14 W	38° (standard)

CODE	TYPE	COLOUR	LAMP	LUMEN	POWER SUPPLY	H**
D545-__	CREDO	white	1x12,6W LED dim to warm 1910K-3000K 350mA	80-1175 lm	excl. driver	115 mm
D549-__	CREDO	black	1x12,6W LED dim to warm 1910K-3000K 350mA	80-1175 lm	excl. driver	115 mm

D901-__	CREDO	white	1x14W LED 2700K 500mA	1340 lm	excl. driver	135 mm
D910-__	CREDO	black	1x14W LED 2700K 500mA	1340 lm	excl. driver	135 mm
D923-__	CREDO	white	1x14W LED 3000K 500mA	1395 lm	excl. driver	135 mm
D984-__	CREDO	black	1x14W LED 3000K 500mA	1395 lm	excl. driver	135 mm

D879-__	CREDO	white	1x9,3W LED 2700K 500mA	860 lm	excl. driver	110 mm
D876-__	CREDO	black	1x9,3W LED 2700K 500mA	860 lm	excl. driver	110 mm
D873-__	CREDO	white	1x9,3W LED 3000K 500mA	880 lm	excl. driver	110 mm
D889-__	CREDO	black	1x9,3W LED 3000K 500mA	880 lm	excl. driver	110 mm

D587	CREDO	white	1xGU10 LED or 1x30W halogen	-	230 V	140 mm
D588	CREDO	black	1xGU10 LED or 1x30W halogen	-	230 V	140 mm

Driver

Photometric data (EULUMDAT) on request.

* Lumen data are nominal data

** H = recessed depth

Accessories

SNOOT

Snoot for recessed downlights CREDO, OPUS, OPUS Q, RENA, RIGA and RIGA Q (32xØ48 mm)

Code	Type	Colour
D120	SNOOT	white
D121	SNOOT	black

dim to warm info

• Light quality and dim characteristics of a conventional light bulb combined with the efficiency of the LED technology
• Colour temperature: 1910 K – 3000 K
