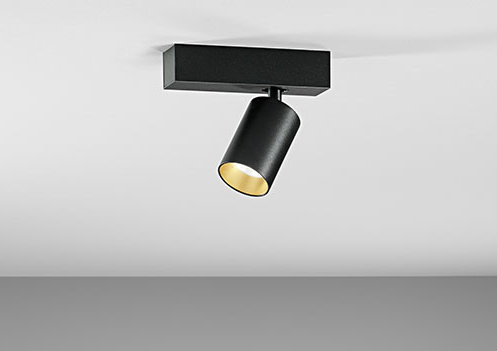

SATURNO 1
LED-spotlight 9,3 W, CRI>90,
made of die-cast aluminium,
leading edge/trailing edge
dimmable, adjustable (350°/90°), anti glare ring optionally gold or black
| CODE | TYPE | COLOUR | LAMP | LUMEN | POWER SUPPLY |
|---|---|---|---|---|---|
| D926 | SATURNO 1 | white/black | 1x9,3W LED 33° 2700K | 860 lm | incl. driver phase dim |
| D927 | SATURNO 1 | white/gold | 1x9,3W LED 33° 2700K | 860 lm | incl. driver phase dim |
| D924 | SATURNO 1 | black/black | 1x9,3W LED 33° 2700K | 860 lm | incl. driver phase dim |
| D925 | SATURNO 1 | black/gold | 1x9,3W LED 33° 2700K | 860 lm | incl. driver phase dim |
Photometric data (EULUMDAT) on request.
* Lumen data are nominal data
Accessories
SATURNO HONEY COMB LOUVER
Honey comb louver for all SATURNO versions
| Code | Type | Colour |
|---|---|---|
| 13114-04 | HONEY COMB LOUVER | black |
SATURNO REFLECTOR
Reflectors for all SATURNO versions
| Code | Type | Colour |
|---|---|---|
| DH-D994 | REFLECTOR 15° | - |
| DH-D996 | REFLECTOR 48° | - |
Colours
 |
 |
 |
 |
| black/black | black/gold | white/black | white/gold |
