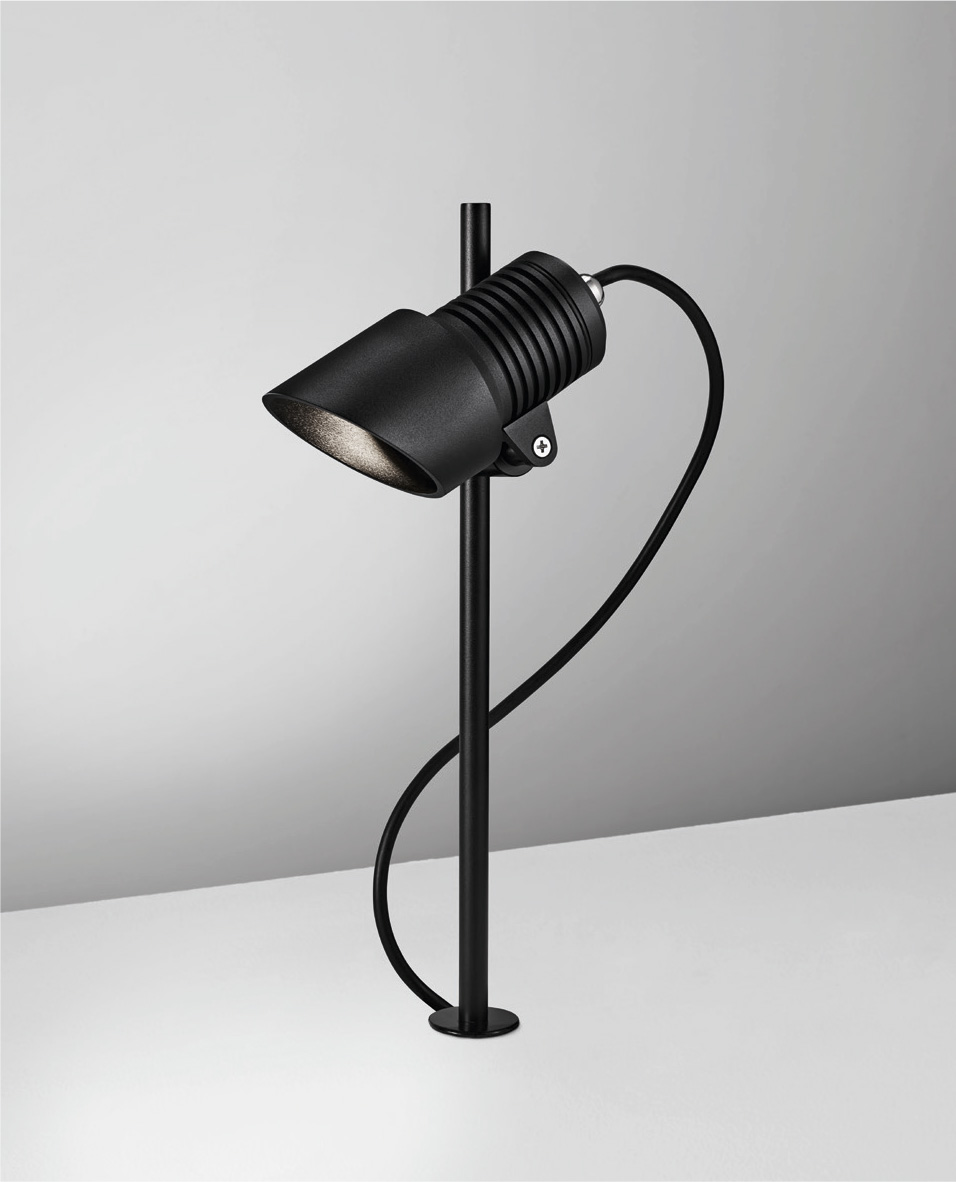

ATLANTIS 75 POLE

Outdoor-fixture with mounting pole and ground spike, for 230 V LED and halogen or 5 W LED, CRI>90, with built-in driver 230 V, housing made of aluminium with anti glare cone, adjustable (360°/180°), height-adjustable, IP65 (GU10) or IP68 (LED)

back to overview
Fixture height-adjustable
CODETYPECOLOURLAMPLUMENPOWER SUPPLY
D976ATLANTIS 75 POLEblack1x5W LED 25° 3000K505 lmincl. driver
D977ATLANTIS 75 POLEblack1xGU10 LED or
1x30W halogen
-230 V
Photometric data (EULUMDAT) on request.
* Lumen data are nominal data

Accessories

ATLANTIS MOUNTING BOX

Mounting box for outdoor fixtures ATLANTIS 75 and ATLANTIS 95

CodeTypeColour
D135ATLANTIS MOUNTING BOXblack
D138ATLANTIS MOUNTING BOXalu

MICRO JUNCTION BOX IP68 - II

Micro junction box IP68, for maximum 1 luminaire
(2 cable outlets from Ø 5 mm to Ø 12 mm),
3-pin with terminal

CodeTypeColour
D161MICRO JUNCTION BOX
IP68 - II
black

MICRO JUNCTION BOX IP68 - IV

Micro junction box IP68, for maximum 3 luminaires
(4 cable outlets from Ø 5 mm to Ø 12 mm),
3-pin with terminal

CodeTypeColour
D162MICRO JUNCTION BOX
IP68 - IV
black

MICRO JUNCTION BOX IP68 - IV

Micro junction box IP68, for maximum 3 luminaires
(4 cable outlets from Ø 6,5 mm to Ø 12 mm),
3-pin with terminal in in mineral oil based grease

CodeTypeColour
5625MICRO JUNCTION BOX
IP68 - IV
black
