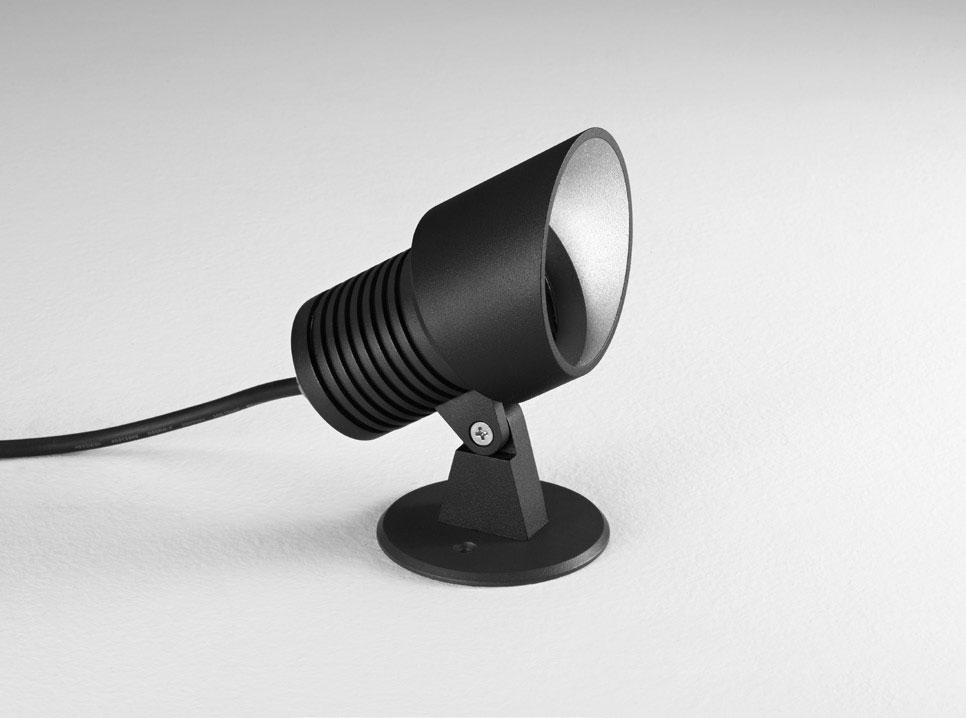

ATLANTIS 75

Outdoor-fixture  for 230 V LED and halogen or 5 W LED, CRI>90, with built-in driver 230 V, housing made of aluminium with anti glare cone, adjustable (100°), IP65 (GU10) or IP68 (LED)

back to overview
CODETYPECOLOURLAMPLUMENPOWER SUPPLY
D846ATLANTIS 75black1x5W LED 25° 3000K505 lmincl. driver
D847ATLANTIS 75black1xGU10 LED or
1x30W halogen
-230 V
Photometric data (EULUMDAT) on request.
* Lumen data are nominal data

Accessories

ATLANTIS GROUND SPIKE

Ground spike for outdoor fixtures ATLANTIS 75 and ATLANTIS 95

CodeTypeColour
D139ATLANTIS GROUND SPIKEblack

ATLANTIS MOUNTING BOX

Mounting box for outdoor fixtures ATLANTIS 75 and ATLANTIS 95

CodeTypeColour
D135ATLANTIS MOUNTING BOXblack
D138ATLANTIS MOUNTING BOXalu

MICRO JUNCTION BOX IP68 - II

Micro junction box IP68, for maximum 1 luminaire
(2 cable outlets from Ø 5 mm to Ø 12 mm),
3-pin with terminal

CodeTypeColour
D161MICRO JUNCTION BOX
IP68 - II
black

MICRO JUNCTION BOX IP68 - IV

Micro junction box IP68, for maximum 3 luminaires
(4 cable outlets from Ø 5 mm to Ø 12 mm),
3-pin with terminal

CodeTypeColour
D162MICRO JUNCTION BOX
IP68 - IV
black

MICRO JUNCTION BOX IP68 - IV

Micro junction box IP68, for maximum 3 luminaires
(4 cable outlets from Ø 6,5 mm to Ø 12 mm),
3-pin with terminal in in mineral oil based grease

CodeTypeColour
5625MICRO JUNCTION BOX
IP68 - IV
black
