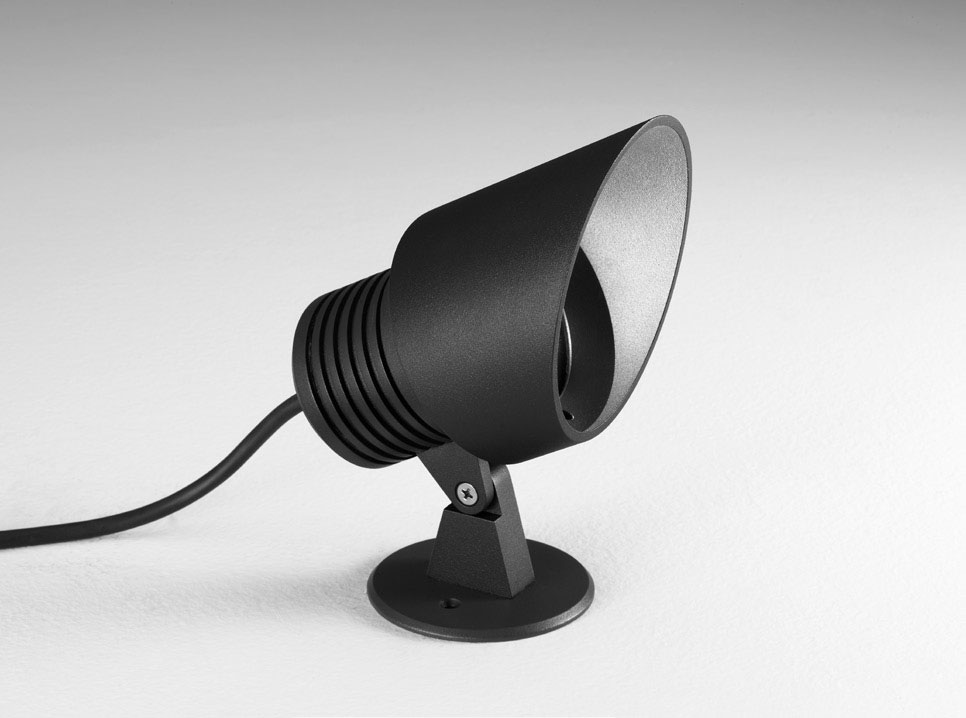

ATLANTIS 95
LED-outdoor-fixture 7 W, CRI>90 with built-in driver 230 V, leading edge/trailing edge dimmable, housing made of aluminium with anti glare cone, IP68
| CODE | TYPE | COLOUR | LAMP | LUMEN | POWER SUPPLY |
|---|---|---|---|---|---|
| D815 | ATLANTIS 95 | alu | 1x7W LED 30° 3000K | 710 lm | incl. driver |
| D845 | ATLANTIS 95 | black | 1x7W LED 30° 3000K | 710 lm | incl. driver phase dim |
Photometric data (EULUMDAT) on request.
* Lumen data are nominal data
Accessories
ATLANTIS GROUND SPIKE
Ground spike for outdoor fixtures ATLANTIS 75 and ATLANTIS 95
| Code | Type | Colour |
|---|---|---|
| D139 | ATLANTIS GROUND SPIKE | black |
ATLANTIS MOUNTING BOX
Mounting box for outdoor fixtures ATLANTIS 75 and ATLANTIS 95
| Code | Type | Colour |
|---|---|---|
| D135 | ATLANTIS MOUNTING BOX | black |
| D138 | ATLANTIS MOUNTING BOX | alu |
MICRO JUNCTION BOX IP68 - II
Micro junction box IP68, for maximum 1 luminaire
(2 cable outlets from Ø 5 mm to Ø 12 mm),
3-pin with terminal
| Code | Type | Colour |
|---|---|---|
| D161 | MICRO JUNCTION BOX IP68 - II | black |
MICRO JUNCTION BOX IP68 - IV
Micro junction box IP68, for maximum 3 luminaires
(4 cable outlets from Ø 5 mm to Ø 12 mm),
3-pin with terminal
| Code | Type | Colour |
|---|---|---|
| D162 | MICRO JUNCTION BOX IP68 - IV | black |
MICRO JUNCTION BOX IP68 - IV
Micro junction box IP68, for maximum 3 luminaires
(4 cable outlets from Ø 6,5 mm to Ø 12 mm),
3-pin with terminal in in mineral oil based grease
| Code | Type | Colour |
|---|---|---|
| 5625 | MICRO JUNCTION BOX IP68 - IV | black |
