CLIPPO EP

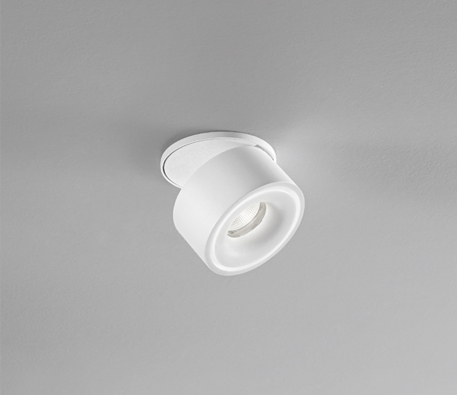

LED-ceiling recessed luminaire 13 W or 14 W, CRI>90, with high-quality aluminium reflector, housing made of aluminium, adjustable (350°/90°), anti glare ring optionally gold, black or white, please order driver separately

back to overview

CODE	TYPE	COLOUR	LAMP	LUMEN	POWER SUPPLY	H**
D729	CLIPPO EP	white/white	1x13W LED 33° dim to warm 350mA	120-1100 lm	excl. driver	45 mm
D733	CLIPPO EP	white/gold	1x13W LED 33° dim to warm 350mA	120-1100 lm	excl. driver	45 mm
D735	CLIPPO EP	black/black	1x13W LED 33° dim to warm 350mA	120-1100 lm	excl. driver	45 mm
D738	CLIPPO EP	black/gold	1x13W LED 33° dim to warm 350mA	120-1100 lm	excl. driver	45 mm

D676	CLIPPO EP	white/white	1x14W LED 32° 2700K 500mA	1310 lm	excl. driver	45 mm
D677	CLIPPO EP	white/gold	1x14W LED 32° 2700K 500mA	1310 lm	excl. driver	45 mm
D674	CLIPPO EP	black/black	1x14W LED 32° 2700K 500mA	1310 lm	excl. driver	45 mm
D675	CLIPPO EP	black/gold	1x14W LED 32° 2700K 500mA	1310 lm	excl. driver	45 mm

D692	CLIPPO EP	white/white	1x14W LED 32° 3000K 500mA	1375 lm	excl. driver	45 mm
D693	CLIPPO EP	white/gold	1x14W LED 32° 3000K 500mA	1375 lm	excl. driver	45 mm
D682	CLIPPO EP	black/black	1x14W LED 32° 3000K 500mA	1375 lm	excl. driver	45 mm
D683	CLIPPO EP	black/gold	1x14W LED 32° 3000K 500mA	1375 lm	excl. driver	45 mm

Driver

Photometric data (EULUMDAT) on request.

* Lumen data are nominal data

** H = recessed depth

Accessories

CLIPPO HONEY COMB LOUVER

Honey comb louver for CLIPPO, CLIPPO DUO and CLIPPO EP

Code	Type	Colour
D146	HONEY COMB LOUVER	black

CLIPPO REFLECTOR

Reflectors and lenses for CLIPPO versions

Code	Type	Colour
DH-D594	REFLECTOR 24° (13 W)	-
DH-D596	REFLECTOR 50° (13 W)	-
DH-D877	LENS 18° (14 W)	-
DH-D994	REFLECTOR 15° (14 W)	-
DH-D996	REFLECTOR 48° (14 W)	-

Colours


black/black	black/gold	white/white	white/gold

dim to warm info

• Light quality and dim characteristics of a conventional light bulb combined with the efficiency of the LED technology
• Colour temperature: 1910 K – 3000 K
