KYO

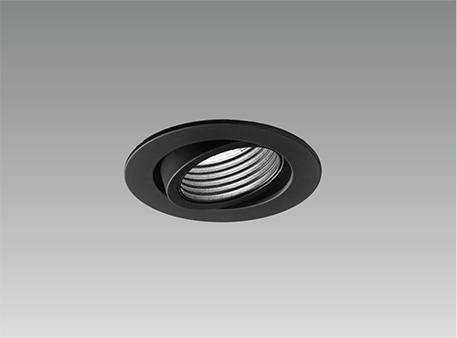

Recessed downlight made of aluminium, adjustable (2 x 30°), with recessed lamp and anti glare ring:

1) with dim to warm LED 12,6 W, CRI>90, LED module replaceable, please order driver separately

2) with LED 9,3 W or 14 W, 2700K or 3000K, CRI>90, dimmable, LED module replaceable, please order driver separately

3) GU10 LED and halogen lamps are suitable

back to overview

Please choose the beam angle:

	LED-MODULE	BEAM ANGLE
	Dxxx-11	9,3 W	11° (lens)
	Dxxx-15	9,3 W / 12,6 W	15°
	Dxxx-25	9,3 W / 12,6 W	25°
	Dxxx-38	9,3 W / 12,6 W	38° (standard)
	Dxxx-60	9,3 W / 12,6 W	60°

	Dxxx-15	14 W	15°
Dxxx-25	14 W	25°
Dxxx-38	14 W	38° (standard)

CODE	TYPE	COLOUR	LAMP	LUMEN	POWER SUPPLY	H**
D465-__	KYO	white	1x12,6W LED dim to warm 1910K-3000K 350mA	80-1175 lm	excl. driver	95 mm
D469-__	KYO	black	1x12,6W LED dim to warm 1910K-3000K 350mA	80-1175 lm	excl. driver	95 mm

D405-__	KYO	white	1x14W LED 2700K 500mA	1340 lm	excl. driver	115 mm
D408-__	KYO	black	1x14W LED 2700K 500mA	1340 lm	excl. driver	115 mm
D409-__	KYO	white	1x14W LED 3000K 500mA	1395 lm	excl. driver	115 mm
D410-__	KYO	black	1x14W LED 3000K 500mA	1395 lm	excl. driver	115 mm

D859-__	KYO	white	1x9,3W LED 2700K 500mA	860 lm	excl. driver	90 mm
D856-__	KYO	black	1x9,3W LED 2700K 500mA	860 lm	excl. driver	90 mm
D853-__	KYO	white	1x9,3W LED 3000K 500mA	880 lm	excl. driver	90 mm
D886-__	KYO	black	1x9,3W LED 3000K 500mA	880 lm	excl. driver	90 mm

D403	KYO	white	1xGU10 LED or 1x30W halogen	-	230 V	120 mm
D404	KYO	black	1xGU10 LED or 1x30W halogen	-	230 V	120 mm

Driver

Photometric data (EULUMDAT) on request.

* Lumen data are nominal data

** H = recessed depth

dim to warm info

• Light quality and dim characteristics of a conventional light bulb combined with the efficiency of the LED technology
• Colour temperature: 1910 K – 3000 K
