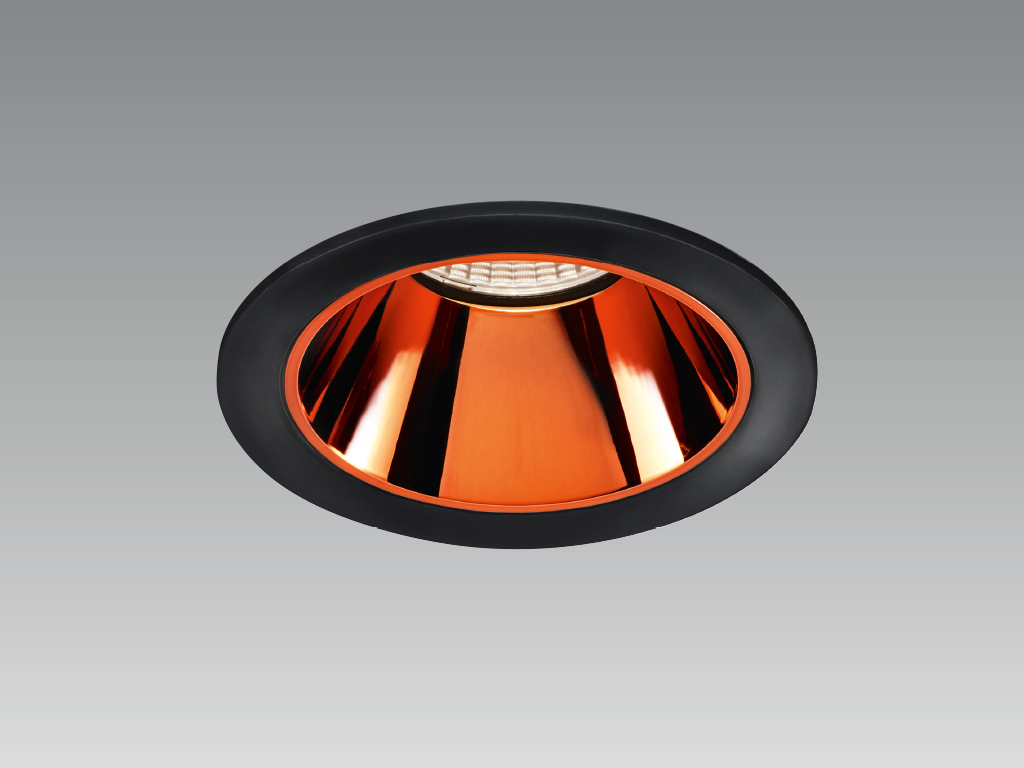

MIRA

Recessed downlight made of alu­minium, with recessed lamp:

1) with dim to warm LED 12,6 W, CRI>90, LED module replaceable, please order driver separately

2) with LED 9,3 W or 14 W, 2700K or 3000K, CRI>90, dimmable, LED module replaceable, please order driver separately

3) GU10 LED and halogen lamps are suitable

back to overview
80

ACCENT RING

Please choose the accent ring:

CODE COLOUR
Dxxx-BL-__ black
Dxxx-CH-__ chrome  (standard)
Dxxx-CO-__ copper
Dxxx-MC-__ matt chrome




BEAM ANGLE

Please choose the beam angle:

CODE LED-MODULE BEAM ANGLE
Reflector Dxxx-11 9,3 W 11° (lens)
Dxxx-15 9,3 W / 12,6 W 15°
Dxxx-25 9,3 W / 12,6 W 25°
Dxxx-38 9,3 W / 12,6 W 38° (standard)
Dxxx-60 9,3 W / 12,6 W 60°
Dxxx-15 14 W 15°
Dxxx-25 14 W 25°
Dxxx-38 14 W 38° (standard)




CODETYPECOLOURLAMPLUMENPOWER SUPPLYH**
D658-__-__MIRAwhite1x12,6W LED dim to warm 1910K-3000K 350mA80-1175 lmexcl. driver105 mm
D659-__-__MIRAblack1x12,6W LED dim to warm 1910K-3000K 350mA80-1175 lmexcl. driver105 mm
D660-__-__MIRAwhite1x14W LED 2700K 500mA1340 lmexcl. driver125 mm
D661-__-__MIRAblack1x14W LED 2700K 500mA1340 lmexcl. driver125 mm
D662-__-__MIRAwhite1x14W LED 3000K 500mA1395 lmexcl. driver125 mm
D663-__-__MIRAblack1x14W LED 3000K 500mA1395 lmexcl. driver125 mm
D664-__-__MIRAwhite1x9,3W LED 2700K 500mA860 lmexcl. driver100 mm
D665-__-__MIRAblack1x9,3W LED 2700K 500mA860 lmexcl. driver100 mm
D666-__-__MIRAwhite1x9,3W LED 3000K 500mA880 lmexcl. driver100 mm
D667-__-__MIRAblack1x9,3W LED 3000K 500mA880 lmexcl. driver100 mm
D650-__MIRAwhite1xGU10 LED or 1x30W halogen-230 V130 mm
D651-__MIRAblack1xGU10 LED or 1x30W halogen-230 V130 mm
Driver
Photometric data (EULUMDAT) on request.
* Lumen data are nominal data
** H = recessed depth

dim to warm info

• Light quality and dim characteristics of a conventional light bulb combined with the efficiency of the LED technology
• Colour temperature: 1910 K – 3000 K
