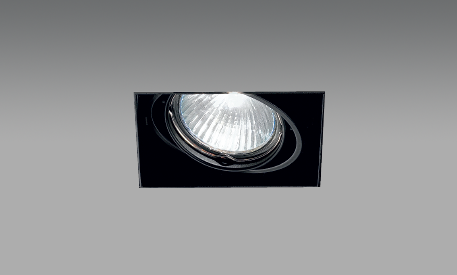

NO FRAME 80
Recessed downlight 12 V or 230 V, for trimless assembly, mountable without tools, illuminant gimbal mounted (2 x 30°), 12 V or 230 V LED and halogen lamps are suitable, please order transformer and recessed frame (KIT) separately
90x90| CODE | TYPE | COLOUR | LAMP | LUMEN | POWER SUPPLY | H** |
|---|---|---|---|---|---|---|
| D911 | NO FRAME 80 | white | 1xGU10 LED or 1x30W halogen | - | 230 V | 140 mm |
| D912 | NO FRAME 80 | black | 1xGU10 LED or 1x30W halogen | - | 230 V | 140 mm |
| D411 | NO FRAME 80 | white | 1xGU5,3 LED or 1x35W IRC halogen | - | excl. transformer | 120 mm |
| D412 | NO FRAME 80 | black | 1xGU5,3 LED or 1x35W IRC halogen | - | excl. transformer | 120 mm |
Photometric data (EULUMDAT) on request.
** H = recessed depth
Accessories
KIT 80
Recessed frame for NO FRAME 80 for 12,5 mm and 20 mm plasterboards. Compensating plates for other dimensions of plasterboards on request.
| Code | Type | Colour |
|---|---|---|
| D111 | KIT 80 | white |
| D112 | KIT 80 | black |
