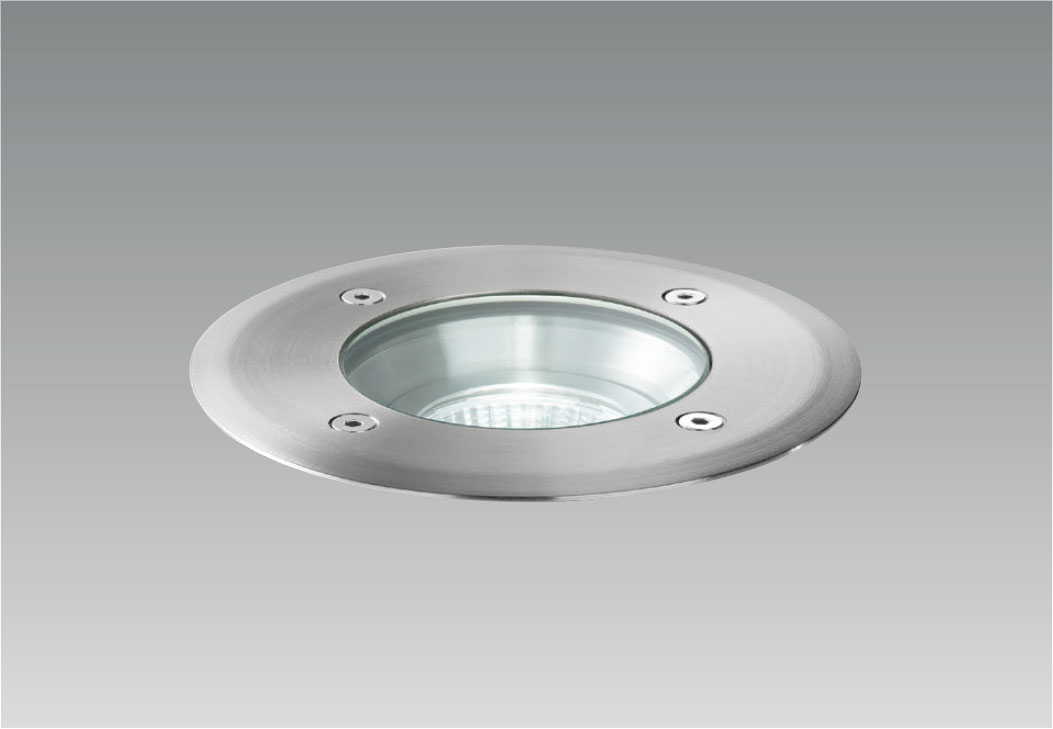

SCOTTY 3
LED-inground luminaire 3 W, CRI>90, with high-quality aluminium reflector and built-in driver 230 V, adjustable 2 x 30°, stainless steel ring, including mounting box, IP67,
15° and 38° beam angle on request
101| CODE | TYPE | COLOUR | LAMP | LUMEN | POWER SUPPLY | H** |
|---|---|---|---|---|---|---|
| D821 | SCOTTY 3 | stainless steel | 1x3W LED 25° 3000K | 408 lm | incl. driver | 138 mm |
Photometric data (EULUMDAT) on request.
* Lumen data are nominal data
** H = recessed depth
Accessories
MICRO JUNCTION BOX IP68 - II
Micro junction box IP68, for maximum 1 luminaire
(2 cable outlets from Ø 5 mm to Ø 12 mm),
3-pin with terminal
| Code | Type | Colour |
|---|---|---|
| D161 | MICRO JUNCTION BOX IP68 - II | black |
MICRO JUNCTION BOX IP68 - IV
Micro junction box IP68, for maximum 3 luminaires
(4 cable outlets from Ø 5 mm to Ø 12 mm),
3-pin with terminal
| Code | Type | Colour |
|---|---|---|
| D162 | MICRO JUNCTION BOX IP68 - IV | black |
MICRO JUNCTION BOX IP68 - IV
Micro junction box IP68, for maximum 3 luminaires
(4 cable outlets from Ø 6,5 mm to Ø 12 mm),
3-pin with terminal in in mineral oil based grease
| Code | Type | Colour |
|---|---|---|
| 5625 | MICRO JUNCTION BOX IP68 - IV | black |
