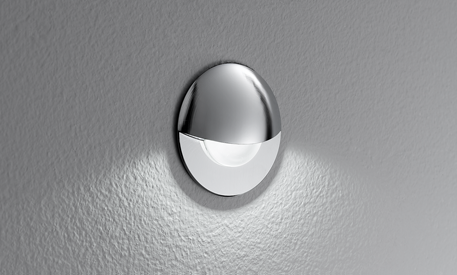

SMILE IP65
LED-wall recessed luminaire
2 W, CRI>90, housing made of aluminium, in anodized version to be used in outdoor areas, please order driver separately
36| CODE | TYPE | COLOUR | LAMP | LUMEN | POWER SUPPLY | H** |
|---|---|---|---|---|---|---|
| 494-09-00-41 | SMILE IP65 | black anodized | 1x2W LED 3000K 500mA | 190 lm | excl. driver | 34 mm |
| 494-09-00-40 | SMILE IP65 | nature anodized | 1x2W LED 3000K 500mA | 190 lm | excl. driver | 34 mm |
* Lumen data are nominal data
** H = recessed depth
Accessories
SMILE MOUNTING BOX
Mounting box for SMILE and SMILE Q
| Code | Type | Colour |
|---|---|---|
| 9000-0136 | MOUNTING BOX 36 | - |
SMILE IP65 MOUNTING RING
Mounting ring (2-parts) for junction boxes Ø 68 mm, H = 60 mm, for SMILE IP65 and SMILE Q IP65, delivery without junction boxes
| Code | Type | Colour |
|---|---|---|
| 9000-0336 | MOUNTING RING 36 | white |
SMILE MOUNTING SLEEVE
Concrete mounting sleeve for SMILE und SMILE Q
| Code | Type | Colour |
|---|---|---|
| 9000-0236 | MOUNTING SLEEVE 36 | - |
